Double Angled Pivoting Joint Chrome Pipe Connectors For Capacity Flow Rack and Conveyor

Double Angled Pivoting Joint For Capacity Flow Rack and Conveyor HJ-12D


Description:

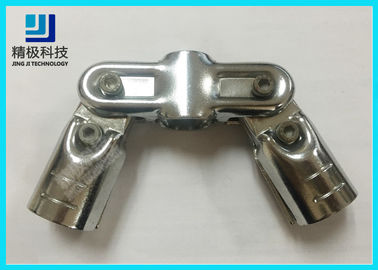

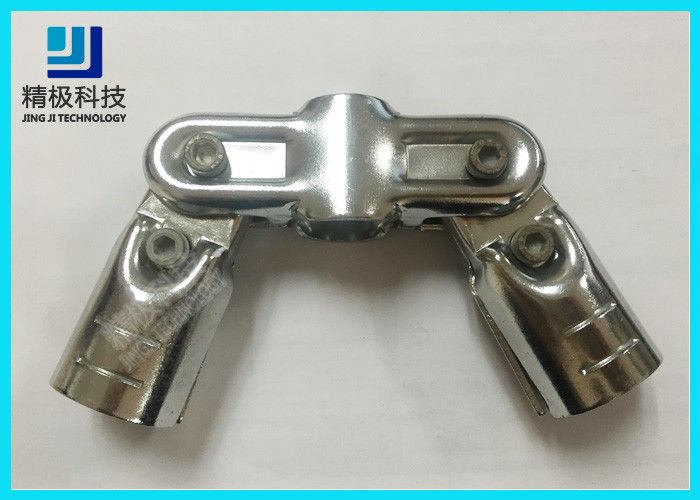

The HJ-12D is a metal connector that lets you make a three-pipe intersection with two adjustable angles. This joint mirrors the applications of the HJ-7D connector. These angle joints let you have multiple applications like bracing, hinging, pegging, deportation, and much more. Each side pipe can rotate up to 175 degrees.

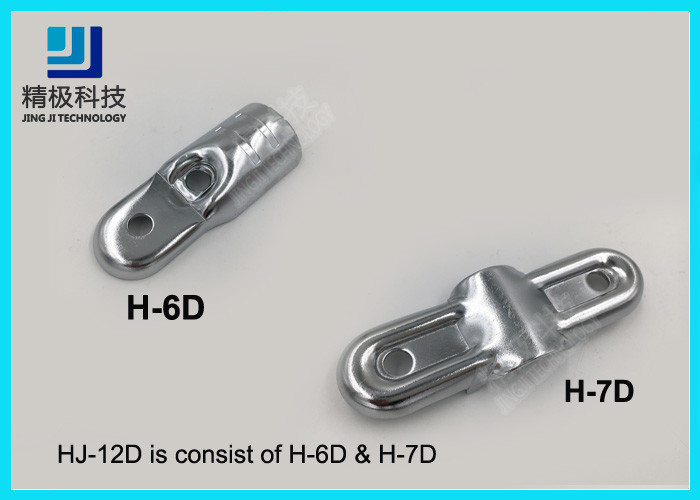

The main advantage of the HJ-12D over the HJ-7D is that your two pipes will start from the same point and will have the same structural and esthetic effect. Without the HJ-12D you would be forced to place two HJ-7 one under another. Doing so would take up double the space of the HJ-12D and would create different dynamics in the structural capacity of your structures. To assemble an HJ-12D, you need to place two H-6D together and two pairs of H-7D together, connecting them to the H-12D with a total of four M6-25 bolts and four M6 nuts.

Combination:

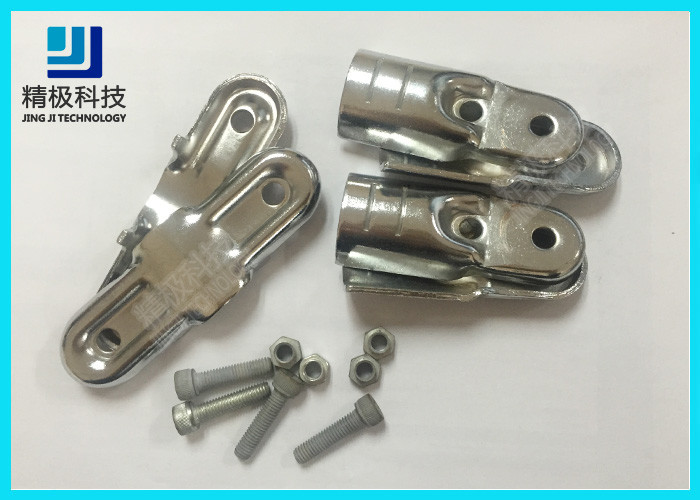

one HJ-12D is combine with 2 pcs H-7D and 4 pcs of H-6 and 4 set of M6*25 Silvery
 It is used for the construction of three compound tubes with a random Angle, which is mainly used to strengthen the overall strength

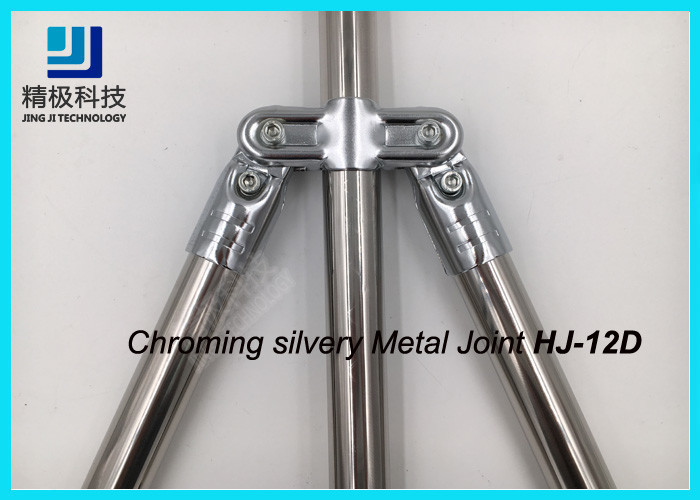

Chroming Meta Joints with Black anti-static PE pipe can assemble into ESD workbench or pipe rack system .




HOW TO INSTALL

1- Make sure you have the following parts:
4 H-6D
2 H-7D
4 M6-25
4 M6
3 3*28mm pipes of your choice
1 spanner 5mm tip

1- Take two connectors H-6D and regroup them around the pipe PE2.
3-Take a M6-25 bolt and a M6 nut and insert them into the openings near the pipe PE2. Make sure to put the bolt on the more accessible side.
4 - Tighten completely the M6-25 bolt and M6 nut together until the H-6D connectors attached firmly to the PE2 pipe . A force of 9.8 Nm is recommended for this step.
5- Repeat step two, three and four with two other connectors H-6D and the PE3 pipe.

2- Take a connector H-7D and fix it in the desired location on the PE1 pipe.
5- Align the remaining openings of H-6D connectors with the H-7D ones.
6-Take two M6-25 bolts and two M6 nuts and insert them into the openings mention in step 7. Make sure to put the bolt on the more accessible side.
8- Tighten completely the M6-25 bolts and M6 nuts together until the HJ-12D attached firmly to all pipes . A force of 9.8 Nm is recommended for this step.

Advantage:
1. The flexible pipe is composed of high-quality steel tube with high quality surface treatment.
2. The outer surface is composed of special plastic layer and inner surface coating.
3. The product has the advantages of beautiful appearance, wear-resisting, bright luster and pollution-free.
4. It is an ideal substitute for stainless steel products.
5. Surface special treatment without acute Angle, completely avoid causing the human body, accessories and accessories, and other items between the stabbing

Features:
1. Flexible and creative: simple structure, and your creativity can be used.
3. Flexibility: modular structure, easy to restructure, make you always have fresh feeling.
4. Safety: flexible pipe plastic surface to reduce the risk of injury to workers in the workplace
5. Environmental protection: pollution-free production, the components are completely recyclable, and eliminate waste, which is completely in line with the international environmental protection concept
6. Body mechanics: a single M6 hexagon wrench can complete the installation process.The concept of multi-purpose is used to give full play to economic benefits.

Application:
Flow Rack
Holds extensive supply of containers for feeding production area with ample return lanes for holding emptied containers.
Angled Flow Rack
Lanes slope lengthwise allowing containers to flow from load to picking end while second lane tilts containers for easy picking and viewing contents.
Supermarket Flow Racks
Wth serveral levels are connected with brackets to maintain spacing and alignment while high-level density provides efficient order picking.
Pipe & Joint System
Provides rigidity and strength for industrial applications without the need for cross bracing while conveying either boxes or plastic totes.



Shop Floor Display Board
It is an ideal tool for use on the shop floor, in production departments, and in hands-on instructional settings.

Pipe Flow Rack & conveyor assembly lines

Provides rigidity and strength for industrial applications without the need for cross bracing while conveying either boxes or plastic totes.

Slopes to allow containers to flow from load end to picking end positioning components close to workers helping reduce repetitive motion injuries.
