White Zinc Plated Sliding Roller Track Joint in Racking System / 28mm Coated Pipes

White Zinc Plated Sliding Roller Track Joint in Racking System / 28mm Coated Pipes

    • White Zinc Plated Sliding Roller Track Joint in Racking System / 28mm Coated Pipes
    • White Zinc Plated Sliding Roller Track Joint in Racking System / 28mm Coated Pipes
  • White Zinc Plated Sliding Roller Track Joint in Racking System / 28mm Coated Pipes

    Thông tin chi tiết sản phẩm:

    Place of Origin: Shenzhen ,China
    Hàng hiệu: Top-King
    Chứng nhận: ISO9001:2008;RoHS
    Model Number: EF-2044P

    Thanh toán:

    Minimum Order Quantity: 300 PCS
    Giá bán: Negotiation
    Packaging Details: 108 PCS in a carton (Size:360*300*160mm)
    Delivery Time: Within 10 days after received deposit
    Payment Terms: TT
    Supply Ability: 3000 pcs per day
    Liên hệ với bây giờ
    Chi tiết sản phẩm

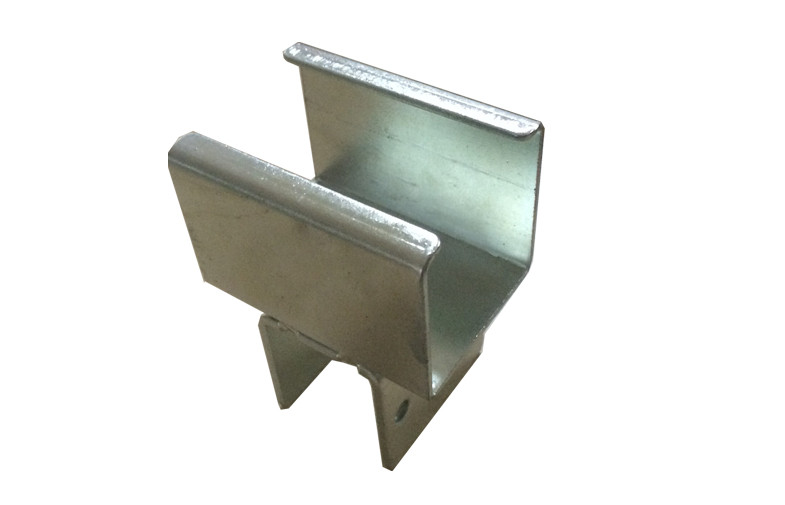

    White Zinc Plated Sliding Roller Track Joint in Racking System / 28mm Coated Pipes





    Quick Detail:

    1. Metal Connector for roller track, connecting without welding ,without bolt and nut.
    2. Roller Track support is one part of the materials in FIFO pipe rack products.
    3. Using for roller track and roller track support together for the conveyor system to transport goods, materials and cartons more efficient convenient and faster.
    4. The placon support is for Width 39mm roller track or OUT Diameter 28mm Coated Pipes
    5. A wide variety of end supports is available to fix and support the roller track on the pipe and joint structure.
    6. Different size of roller track and support for our customers’ choice.



    Description:

    1. Roller track support also call the connector of roller track. It’s one important parts in flow pipe rack system. Because those placon support one side connecting the Out diameter 28mm coated pipe, the other side connecting the suitable roller track.
    2. A wide variety of end support for customers’ choice,flat end ,higher end and lower end,etc.
    3. Different surface treatment will have three color can be chose. The electrophoresis, plating white zinc, color zinc plating

    1

    Basic Description:

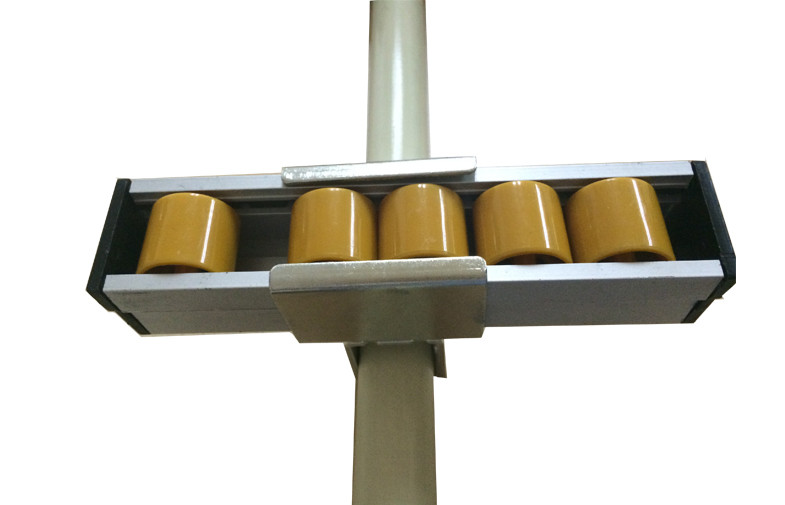

    Used with Width 39mm Roller track and 28mm coated pipes as joint, to form into gravity flow racks,carts, etc.

    2

    We are the direct sparing parts manufacturer,have full of experience in this field,the quality of the goods can be totally trusted, samples are here for your evaluation

    3

    Outstanding benefits:

     It can be reused for many times.Every layer can be adjusted

     Abrasion resistance

     Much longer longervity

     Durable strength and flexibility

    4

    With independent import and export authority ,we have established a complete service system





    Applications:

    1. Roller Track support using for connecting OD28mm plastic coated pipe and roller track on the flow pipe rack products.
    2. Assembly mobile trolley for transport materials box or finished products.
    3. Connection between the workstation on the assembly line.
    4. Transfer point.
    5. Other products you want to assemble.



    Specifications:



    1. Item No.

    EF-2044P

    2. Material

    SPCC steel

    3. Surface treatment

    Electrophoresis, white zinc plated and color zinc plating

    4. Dimension

    94*43*40.4mm

    5. Weight

    0.2kg/pcs

    6. Technique

    stamping

    7. Thickness

    2.5mm





    Competitive Advantage:



    A. Simple and easy to operate.

    B. Improving the efficiency of goods circulation

    C. Simplify assembling & disassembling without special skills

    D. Easy to handle products

    E. Unnecessary to equip special facilities  for usage

    F. Continuous reforming activities are possible





    Our service



     1. The quick delivery time


    With the powerful production lines and professional team, we will guarantee the delivery time according

    to your request.



    2. The perfect package


    We pay very much attention to the export packages. We have plastic clips on the beams to protect the

    beams from surface damage in the transportation.



    3. The long warranty time


    The High Standards in the Design and Manufacturing ensure us to support the products with a  10 Years Warranty Time for your normal use.
