Steel Plated 5 Way Coated Metal Pipe Joint 2.3mm Thickness For Racking System

Steel Plated 5 Way Coated Metal Pipe Joint 2.3mm Thickness For Racking System

  • Steel Plated 5 Way Coated Metal Pipe Joint 2.3mm Thickness For Racking System
  • Steel Plated 5 Way Coated Metal Pipe Joint 2.3mm Thickness For Racking System
Steel Plated 5 Way Coated Metal Pipe Joint 2.3mm Thickness For Racking System
Thông tin chi tiết sản phẩm:
Place of Origin: Shenzhen,China
Hàng hiệu: TOP-KING
Chứng nhận: ISO9001 : SGS : RoHS Test Report
Model Number: HJ-5
Thanh toán:
Minimum Order Quantity: 500 sets
Giá bán: Negotiation
Packaging Details: Packing in a 300mm*160mm carton
Delivery Time: 5-7 working day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 sets per day
Tiếp xúc
Chi tiết sản phẩm
Material: Steel plate for stamping Color: Black
Type: 5 ways pipe connector Weight: 3500g/set
Thickness: 2.3mm - 2.5mm Inner Diameter: 28mm
Technics: Stamping Bolt&nut: M6*25
Head code: Round Main Market: Global
HS code: 7307990000 Skype: jingji.may
Điểm nổi bật:

steel pipe connectors

,

metal tube connectors

Steel Plated 5 Way Coated Metal Pipe Joint 2.3mm Thickness For Racking System




Quit Detail :


1. Material:

2.3mm - 2.5mm Thickness cold-roll steel plate

2. Surface treatment :

Surface electrophoresis treatment(Black one), Zinc/ Nickel /Chrome
plated(Silvery one)

3.  production procedure:

SPCC Steel→ Cut → Model →Stamping →Polish→ Electrophoresis
Or Plating

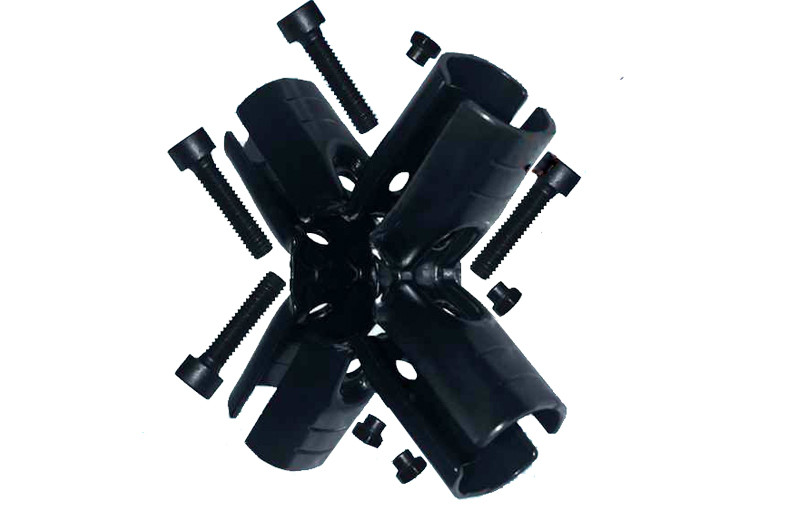

4. Main Combination:

4 pieces of H-2  and 4 sets of M6*25 bolt & nut .(H-2*4+M6*25*4)

5.Weight

3500 g/set

6. Item No.

HJ-5



Advantage of pipe rack joint.


1, Sample and easy to operate.
2, High glossy and have different loading capacity.
4. Using only Plastic coated pipes and pipe rack metal joints, all kinds of pipe rack
products can be assembled.Such as handcarts, workbench, storage shelves, storage
 rack, gravity flow racks, shelf of electronic components and even more racking system.
In facts, almost pipe rack product scan be manufactured by multiunit Pipe and pipe Joints.
Our pipe rack products are sold with competitive price and high quality. And the trade is
conducted on the basis of quality for all over the world.


 Operation :

1. Firstly,find two pcs H-2,one pcs H-4 and 3sets M6*25 bolts&nuts.
2. Secondly,connecting them together with M6*25 by hand.
3. Put the pipes into the pipe joints,then tighten the M6*25 with a M6 wrench.

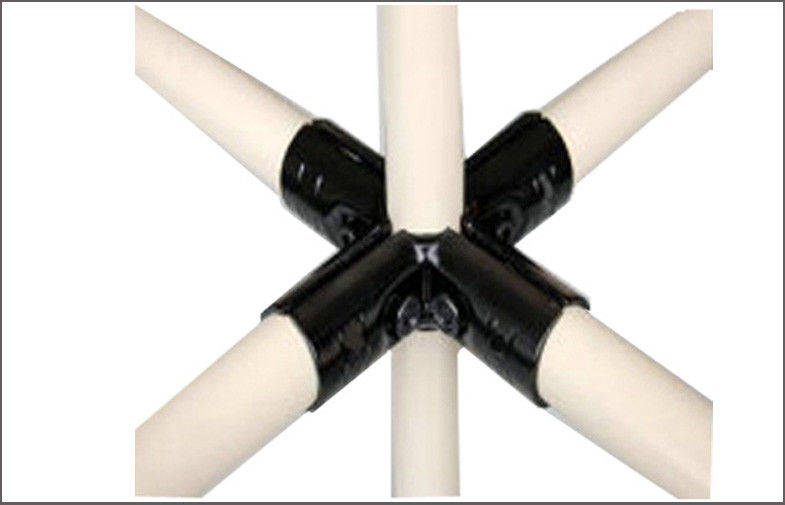

Features of 5 ways Metal pipe connector :



1

During the whole treament of surface , we have added the milling process.So the surface is very smooth and glossy.

2

Our craftsmanship is solid enough, the technical QC department is a guarantee,we can promise the quality from our factory.

3

The metal joints are easy and simple to handle,don’t need any special equipment and technics,simply connected by nuts and bolts to form into any shape and function you want.

4

We are involved in manufacturing and supplying a wide range of metal joints. These metal joints will be fastened by bolt & nut. so that these can be easily assembled & disassembled.

5

These items together with the coated pipes, metal joints and other accessories can be connected,they can be applied on pipe rack system,they are totally eco-friendly and environmental,can be widely used on production line,warehouse rack.etc


Packing :



 1. Pipe joints and other accessories:
Orginal packing is corrugated carton with any printing .

2. Alumiun alloy Pipes and palstic coated pipes:
Original packing us is 10 pcs packing together in a bar with plastic bags
and white woven bag .


About shipping

1. Sample:
DHL/UPS/TNT/EMS/HKEMS/FedEx are all available .
2. Bulk order:
In order to save transportation cost, it is recommended to use by sea,LCL or FCL is available

Why choose Shenzhen Jingji(Top-king)

1. Welcome to visit our factory before you place an order

2. High Quality Control with ISO SGS certificate.

3. Export to 60 countries ,have many experience and stong ability to  export .

4. Customer's Designs and Logos are Welcome

5. Earth-friendly Products with cheaper price

6. OEM & ODM are welcome


 If the product is defective, please notify us within 3 days of delivery.
We will replace the broken parts with new parts in the next order
