    Thông tin chi tiết sản phẩm:

    Place of Origin: Shenzhen ,China
    Hàng hiệu: Top-King
    Chứng nhận: ISO9001:2008;RoHS
    Model Number: HJ-5

    Thanh toán:

    Minimum Order Quantity: 500 set
    Giá bán: Negotiation
    Packaging Details: Packing in a 300mm*160mm carton
    Delivery Time: 5-7 working day
    Payment Terms: TT
    Supply Ability: 10000 sets per day
    Liên hệ với bây giờ
    Chi tiết sản phẩm
    Material: Steel plate for stamping Color: Black
    Type: 5 ways pipe connector Weight: 350g/set
    Thickness: 2.3mm - 2.5mm Inner Diameter: 28mm
    Technics: Stamping Bolt&nut: M6*25
    Head code: Round Main Market: Global
    HS code: 7307990000 Skype: jingji.may

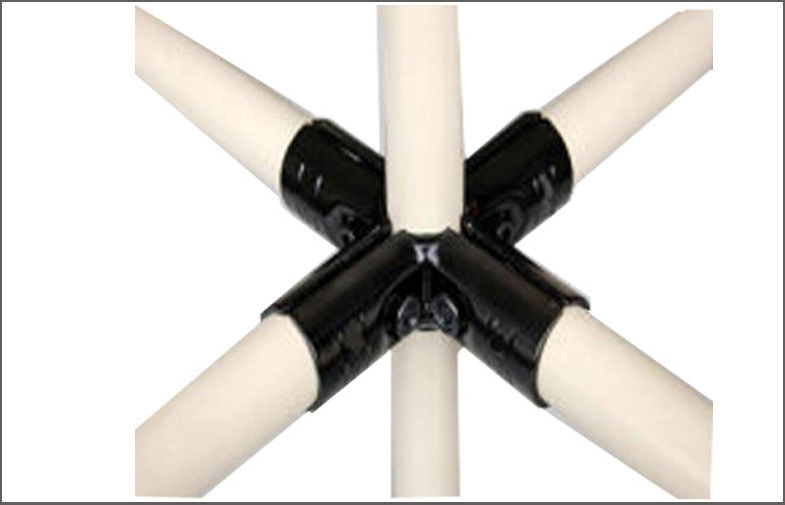

    5 Way Plastic Coated Metal Pipe Connectors , 2.5mm Thickness Cold - Roll Steel Plate


    Quit Detail :



    1. Material:

    2.3mm - 2.5mm Thickness cold-roll steel plate

    2. Surface treatment :

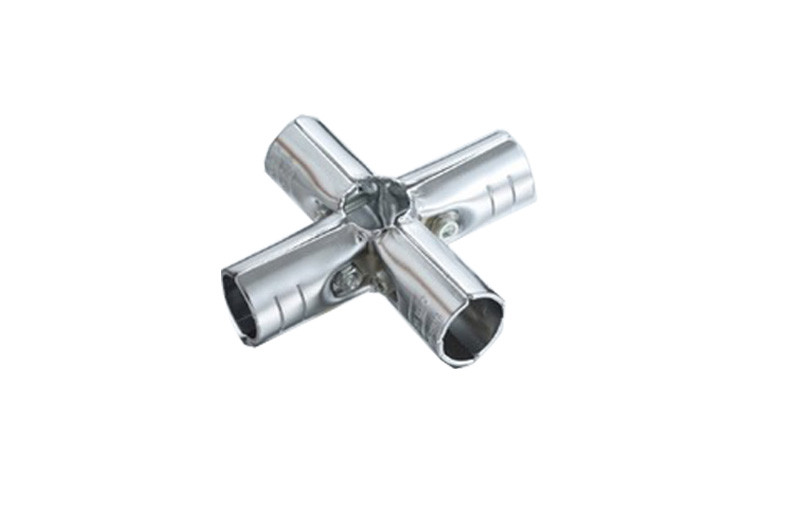

    Surface electrophoresis treatment(Black one), Zinc/ Nickel /Chrome
    plated(Silvery one)

    3.  production procedure:

    SPCC Steel→ Cut → Model →Stamping →Polish→ Electrophoresis
    Or Plating

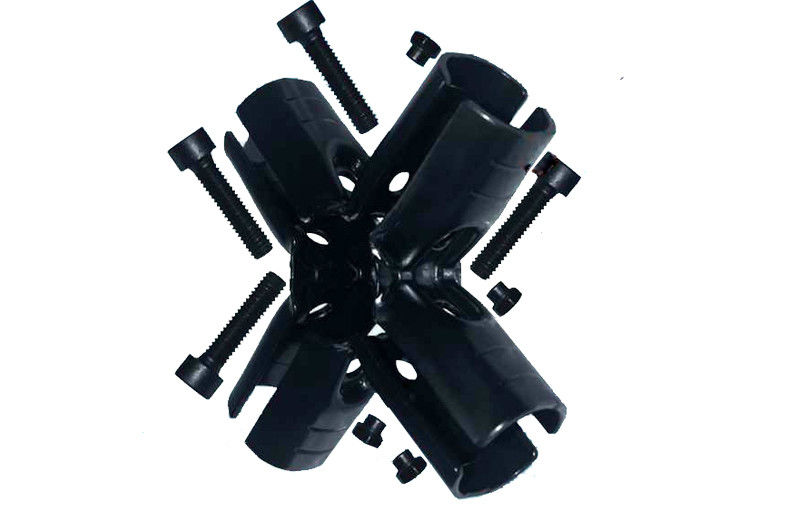

    4. Main Combination:

    4 pieces of H-2  and 4 sets of M6*25 bolt & nut .(H-2*4+M6*25*4)

    5.Weight

    3500 g/set

    6. Item No.

    HJ-5

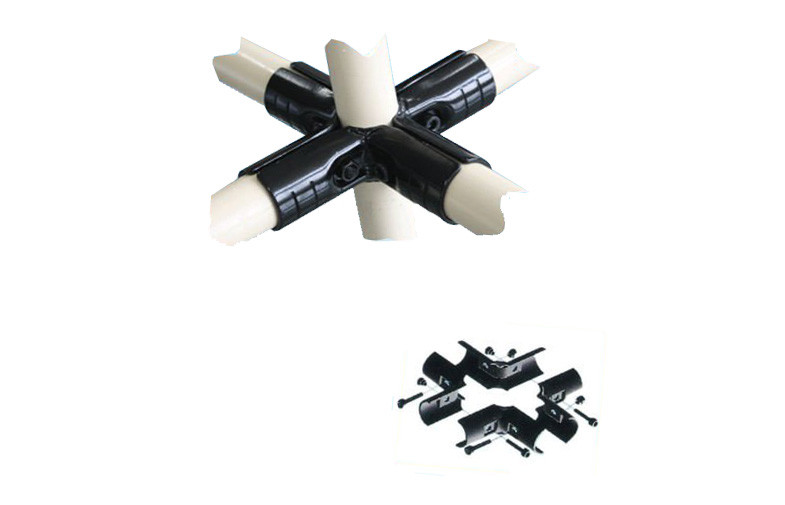

    Operation :

    1.Firstly,find two pcs H-2,one pcs H-4 and 3sets M6*25 bolts&nuts.
    2.Secondly,connecting them together with M6*25 by hand.
    3.Put the pipes into the pipe joints,then tighten the M6*25 with a M6 wrench.

    Advantage of pipe rack joint.


    1, Sample and easy to operate.
    2, High glossy and have different loading capacity.
    4. Using only Plastic coated pipes and pipe rack metal joints, all kinds of pipe rack
    products can be assembled.Such as handcarts, workbench, storage shelves, storage
     rack, gravity flow racks, shelf of electronic components and even more racking system.
    In facts, almost pipe rack product scan be manufactured by multiunit Pipe and pipe Joints.
    Our pipe rack products are sold with competitive price and high quality. And the trade is
    conducted on the basis of quality for all over the world.





    Features of 5 ways Metal pipe connector :


    1

    During the whole treament of surface , we have added the milling process.So the surface is very smooth and glossy.

    2

    Our craftsmanship is solid enough, the technical QC department is a guarantee,we can promise the quality from our factory.

    3

    The metal joints are easy and simple to handle,don’t need any special equipment and technics,simply connected by nuts and bolts to form into any shape and function you want.

    4

    We are involved in manufacturing and supplying a wide range of metal joints. These metal joints will be fastened by bolt & nut. so that these can be easily assembled & disassembled.

    5

    These items together with the coated pipes, metal joints and other accessories can be connected,they can be applied on pipe rack system,they are totally eco-friendly and environmental,can be widely used on production line,warehouse rack.etc

     5 Way Plastic Coated Metal Pipe Connectors , 2.5mm Thickness Cold - Roll Steel Plate5 Way Plastic Coated Metal Pipe Connectors , 2.5mm Thickness Cold - Roll Steel Plate
    Packing :

     1. Pipe joints and other accessories:
    Orginal packing is corrugated carton with any printing .

    2.Alumiun alloy Pipes and palstic coated pipes:
    Original packing us is 10 pcs packing together in a bar with plastic bags
    and white woven bag .


    About shipping

    1.Sample:
    DHL/UPS/TNT/EMS/HKEMS/FedEx are all available .
    2.Bulk order:
    In order to save transportation cost, it is recommended to use by sea,LCL or FCL is available

    Why choose Shenzhen Jingji(Top-king)

    1. Welcome to visit our factory before you place an order

    2. High Quality Control with ISO SGS certificate.

    3. Export to 60 countries ,have many experience and stong ability to  export .

    4. Customer's Designs and Logos are Welcome

    5. Earth-friendly Products with cheaper price

    6. OEM & ODM are welcome

     If the product is defective, please notify us within 3 days of delivery.
    We will replace the broken parts with new parts in the next order
