Iron Frame 60mm Sliding Door Roller Track 15mm Wheel Diameter , White Wheels

Iron Frame 60mm Sliding Door Roller Track 15mm Wheel Diameter , White Wheels

  • Iron Frame 60mm Sliding Door Roller Track 15mm Wheel Diameter , White Wheels
Iron Frame 60mm Sliding Door Roller Track 15mm Wheel Diameter , White Wheels
Thông tin chi tiết sản phẩm:
Place of Origin: Shenzhen ,China
Hàng hiệu: Top-King
Chứng nhận: ISO9001:2008;RoHS
Model Number: EF-2060
Thanh toán:
Minimum Order Quantity: 500 meters
Giá bán: Negotiation
Packaging Details: 10 bars packing together in woven bag
Delivery Time: Within 10 working days after received deposit.
Payment Terms: TT
Supply Ability: 5000 meters per day
Tiếp xúc
Chi tiết sản phẩm
Bracket size: W60*H25MM Bracket thickness: 0.8mm ,1.0mm
Wheels diameter: 15mm *L42MM Wheel load: 20kg / pcs
Out heighr: 30mm
Điểm nổi bật:

roller track systems

,

heavy duty roller track

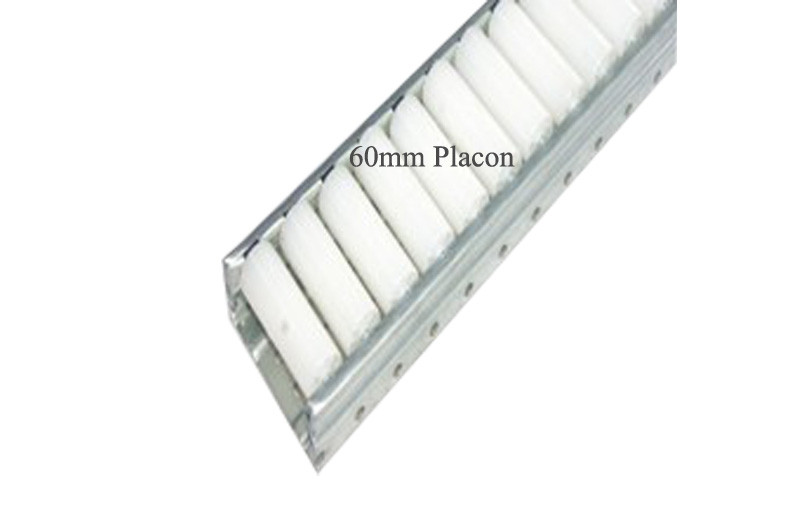

Iron Frame 60mm Placon White Wheels Roller Track 15mm Wheel Diameter





Quick Detail:



1. Size of the roller track:40mm,60mm and 85 mm in width.



2.Iron Frame Track Body



Roller Track is one of pipe rack products’ part, using for assemble in racking, trolley pipe

rack products.



3. The black wheel one have anti-static function and without anti-static optional .



4. There are different size and different material track. Iron body track is 38 mm wide, Aluminum

body track is 40 mm wide.And the 60 mm and 85 mm roller track for your chooce.



5. Different color of wheel for roller track.Yellow, black,white, transparent.The black one can be

divided in to antic-static and not anti-static.



6. There are different shape of joints for roller track to connect the plastic pipe for assemble.

Iron Frame 60mm Sliding Door Roller Track 15mm Wheel Diameter , White Wheels 0



Description:





1. Roller tracks are designed to efficiently transport material of varied size and weight.



2. Using the placon can improve the efficiency of goods flow, due to its easiness to control quality

and store by the ' first-in first-out' ( FIFO) rules


3. Roller tracks are most often used in flow racks, but can be used for virtually any material flow

application, when combining with our coated pipes and pipe fitting.


4. Ideal for requirements in warehouse racking

5. Using our all kinds of metal pulley connectors, the roller tracks are easily installed and will

support significant weight. The slope and spacing between tracks is adjustable and determined

by the size and weight of the material being handled.



Applications:



1. Using for assemble FIFO pipe rack for goods storage to achieve the effect of First In First Out.



2. Assembly mobile trolley for transport materials box or finished products.



3. Connection between the workstation on the assembly line.



4. Transfer point.



5. Other products you want to assemble.





Specifications:



Material of body track

Aluminum body track or Iron body track

Material of wheel

PP or ESD

Color of wheel

Yellow, black, white, transparent

Standard length

4000mm per bar

Width of track

38 mm; 40 mm ;60 mm;85 mm

Name

Roller Track /Placon

Model

EF-2060



Competitive Advantage:



1. Durable and widely used products



2. Simple to operate when assemble



3. Easy to handle the products



4. Direct manufacturer, provide with high quality and best price.



5. Provide sample in free.



6. Cutting service.



7. Products and design solution supplied fast and freely



8. Best design oriented for your special requirements



9. Lifelong technical support



10. Professional team support



11. Standard Design



12. Concept proposal



13. 3D Drawing

Iron Frame 60mm Sliding Door Roller Track 15mm Wheel Diameter , White Wheels 1

Iron Frame 60mm Sliding Door Roller Track 15mm Wheel Diameter , White Wheels 2
