Black PE Small Wheel Roller Track , Galvanized Steel Frame 15mm FIFO Rack

Black PE Small Wheel Roller Track , Galvanized Steel Frame 15mm FIFO Rack

Black PE Small Wheel Roller Track , Galvanized Steel Frame 15mm FIFO Rack

Thông tin chi tiết sản phẩm:

Place of Origin: Shenzhen ,China
Hàng hiệu: Top-King
Chứng nhận: ISO9001:2008;RoHS
Model Number: EF-2060

Thanh toán:

Minimum Order Quantity: 500 meters
Giá bán: Negotiation
Packaging Details: 10 bars packing together in woven bag
Delivery Time: Within 10 working days after received deposit.
Payment Terms: TT
Supply Ability: 5000 meters per day
Liên hệ với bây giờ
Chi tiết sản phẩm
Bracket size: W60*H25MM Bracket thickness: 0.8mm ,1.0mm
Wheels diameter: 15mm *L42MM Wheel load: 20kg / pcs
Out heighr: 30mm

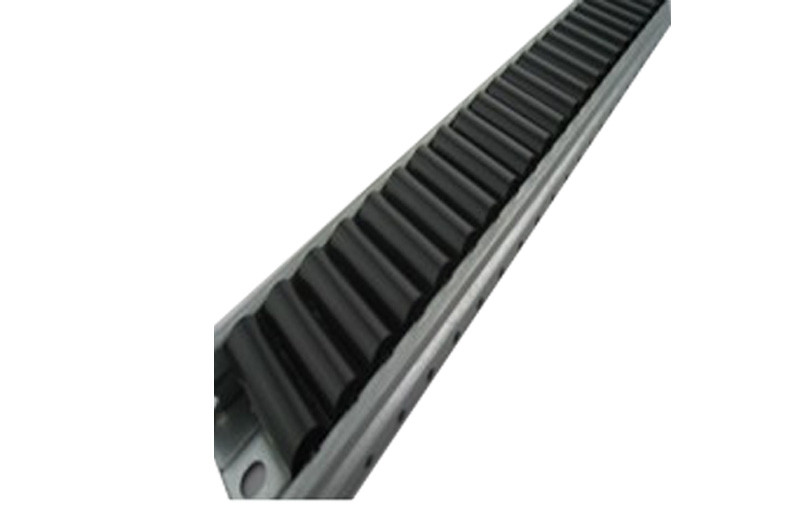

Black Small PE Wheel Placon   Galvanized Steel Frame Roller Track for FIFO Rack





Quick Detail:



1. 60 roller track bracket / Frame size :W60mm*H25mm



2.Thickness of galvanized steel :0.8mmm and 1.0mm



3.PE wheel diameter :Ø15mm*42mm



4.Total height :30mm (including wheel )



5.62 wheels / meter



6.Load capacity :200kg / meter



Description:


1. Ideal for requirements in warehouse racking


2. Using the placon can improve the efficiency of goods flow, due to its easiness to control quality

and store by the ' first-in first-out' ( FIFO) rules



3. There are different size and different material track. Iron body track is 38 mm wide, Aluminum

body track is 40 mm wide.And the 60 mm and 85 mm roller track for your chooce.



4.Using our all kinds of metal pulley connectors, the roller tracks are easily installed and will

support significant weight. The slope and spacing between tracks is adjustable and determined

by the size and weight of the material being handled.





Black PE Small Wheel Roller Track , Galvanized Steel Frame 15mm FIFO Rack



Roller Track is one of pipe rack products’ part, using for assemble in racking, trolley pipe

rack products.



1. The black wheel one have anti-static function and without anti-static optional .





2. Different color of wheel for roller track.Yellow, black,white, transparent.The black one can be

divided in to antic-static and not anti-static.



3. There are different shape of joints for roller track to connect the plastic pipe for assemble.



Applications:



1. Using for assemble FIFO pipe rack for goods storage to achieve the effect of First In First Out.



2. Assembly mobile trolley for transport materials box or finished products.



3. Connection between the workstation on the assembly line.



4. Transfer point.



5. Other products you want to assemble.





Competitive Advantage:



1. Durable and widely used products



2. Simple to operate when assemble



3. Easy to handle the products



4. Direct manufacturer, provide with high quality and best price.



5. Provide sample in free.



6. Cutting service.



7. Products and design solution supplied fast and freely



8. Best design oriented for your special requirements



9. Lifelong technical support



10. Professional team support



11. Standard Design



12. Concept proposal



13. 3D Drawing

Black PE Small Wheel Roller Track , Galvanized Steel Frame 15mm FIFO Rack

Black PE Small Wheel Roller Track , Galvanized Steel Frame 15mm FIFO Rack
