Iron Frame Track Rollers System 60mm Roller Track Conveyor White Placon

Iron Frame Track Rollers System 60mm Roller Track Conveyor White Placon

Iron Frame Track Rollers System 60mm Roller Track  Conveyor White Placon

Thông tin chi tiết sản phẩm:

Place of Origin: Shenzhen ,China
Hàng hiệu: Top-King
Chứng nhận: ISO9001:2008;RoHS
Model Number: EF-2045

Thanh toán:

Minimum Order Quantity: 500 meters
Giá bán: Negotiation
Packaging Details: 10 bars packing together in woven bag
Delivery Time: Within 10 working days after deposit.
Payment Terms: TT
Supply Ability: 5000 meters per day
Liên hệ với bây giờ
Chi tiết sản phẩm
Name: Placon roller track Wheel: PE
Color: White Frame: galvanized steel

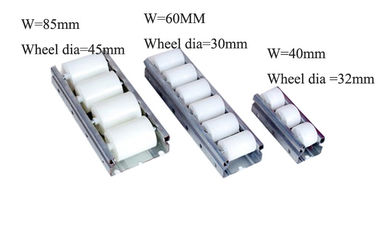

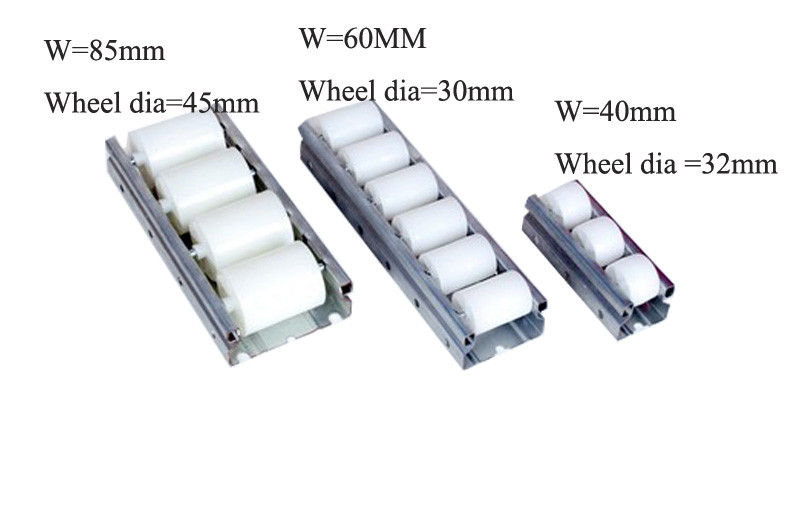

Size: width 40mm, 60mm, 85mm





Iron Frame Track Rollers System 60mm Roller Track  Conveyor White Placon





Quick Detail:



1. Size of the roller track: 38 mm,40 mm,60 mm and 85 mm .



2. Iron and aluminum  Roller Track Body



Roller Track is one of pipe rack products’  part, using for assemble in racking,trolley  pipe

rack products.



3. Only have white color wheel in 85 mm roller track.



4. There are different size and different material track. Iron body track is 38 mm wide, Aluminum

body track is 40 mm wide.And the 60 mm and 85 mm roller track for your chooce.



5. Different color of wheel for roller track.Yellow, black,white, transparent.The black one can be

divided in to antic-static and not anti-static.But 85 mm only have white color wheel.



6 .There are different shape of joints for roller track to connect the plastic pipe for assemble.



Specifications:



85 mm Placon for Pipe and Joint System

Frame Dimension W85mmm*H33mm
Bracket thickness 1.2mm
Wheel Dia & Width 45mm&55mm
Load capacity / wheel 60 kg / wheel
Load capacity / meter  800 kg / meter
Wheel qty  20 pcs / meter



60mm Track roller size

Frame Dimension W60mmm*H33mm
Bracket thickness 0.8mm & 1.0mm
Wheel Dia & Width 30mm&42mm
Load capacity / wheel 300 kg / wheel
Load capacity / meter  300 kg / meter
Wheel qty  28 pcs / meter




40 mm Placon specification



Frame Dimension W40mmm*H33mm
Bracket thickness 1.2mm
Wheel Dia & Width 32mm & 22mm
Load capacity / wheel 10 kg / wheel
Load capacity / meter  100 kg / meter
Wheel qty  28 pcs / meter






Iron Frame Track Rollers System 60mm Roller Track  Conveyor White Placon



Iron Frame Track Rollers System 60mm Roller Track  Conveyor White Placon



Description:





1. Roller tracks are designed to efficiently transport material of varied size and weight.



2. Roller tracks are most often used in flow racks, but can be used for virtually any material flow

application, when combining with our coated pipes and pipe fitting.



3. Ideal for requirements in warehouse racking



4. Using our all kinds of metal pulley connectors, the roller tracks are easily installed and will

support significant weight. The slope and spacing between tracks is adjustable and determined

by the size and weight of the material being handled.



5. Using the placon can improve the efficiency of goods flow, due to its easiness to control quality

and store by the ' first-in first-out' ( FIFO) rules



Applications:





1. Using for assemble FIFO pipe rack for goods storage to achieve the effect of First In First Out.



2. Assembly mobile trolley for transport materials box or finished products.



3. Connection between the workstation on the assembly line.



4. Transfer point.



5. Other products you want to assemble.
